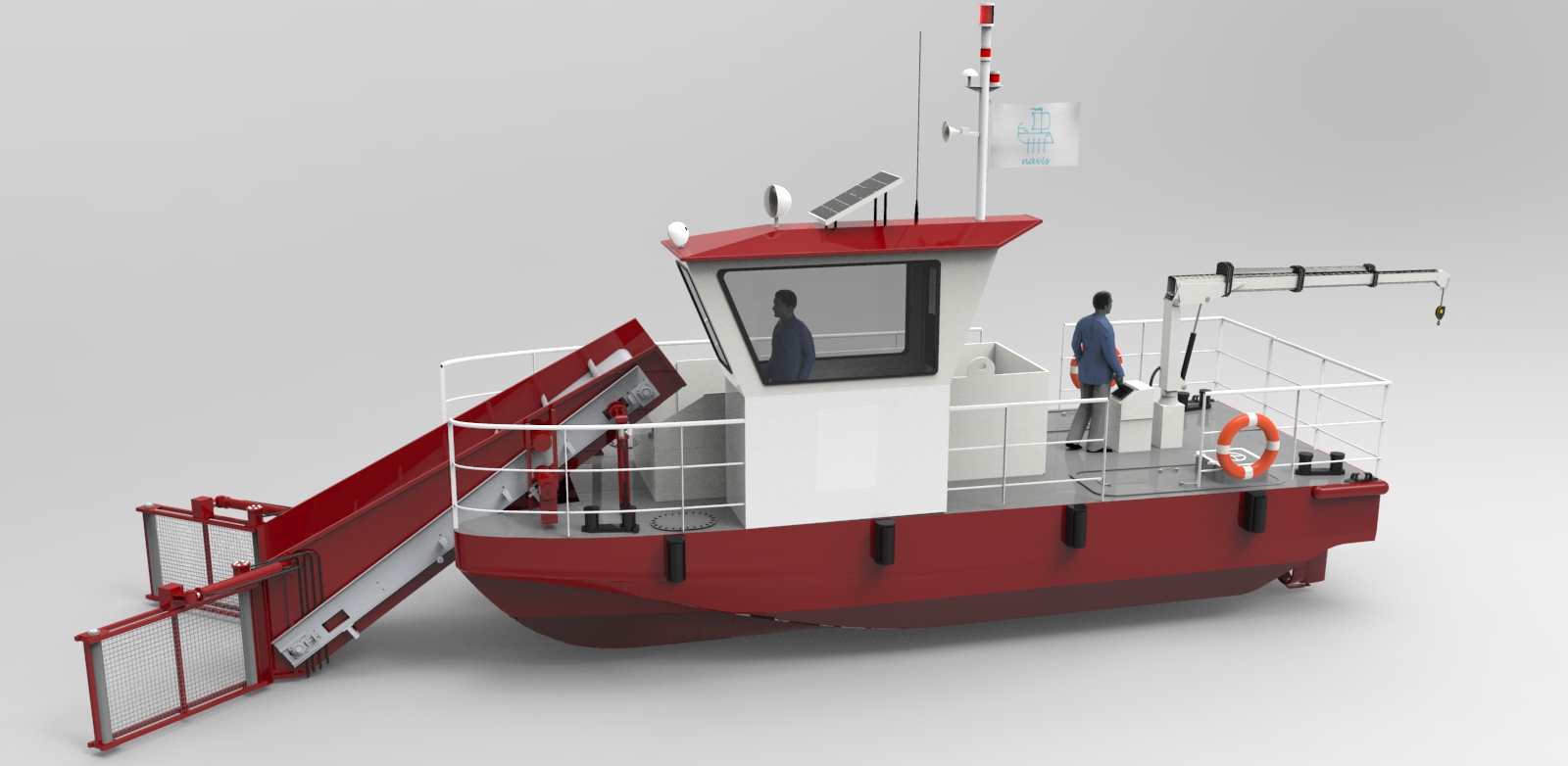

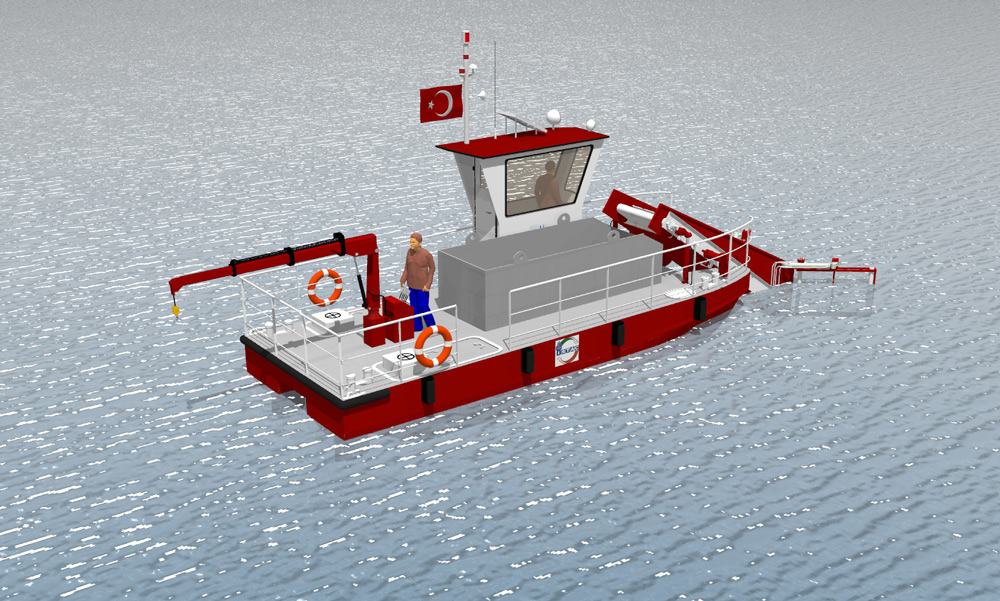

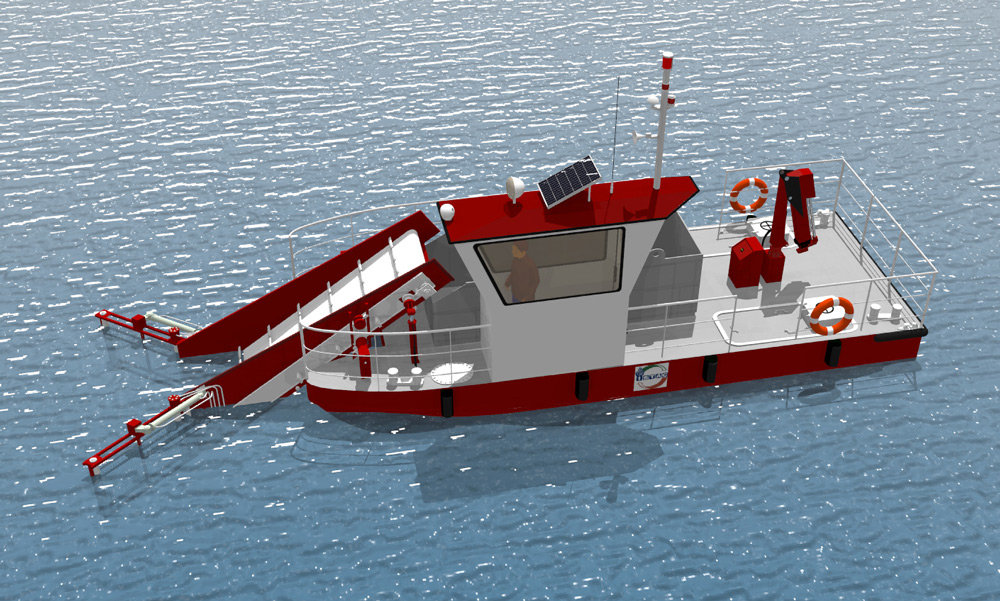

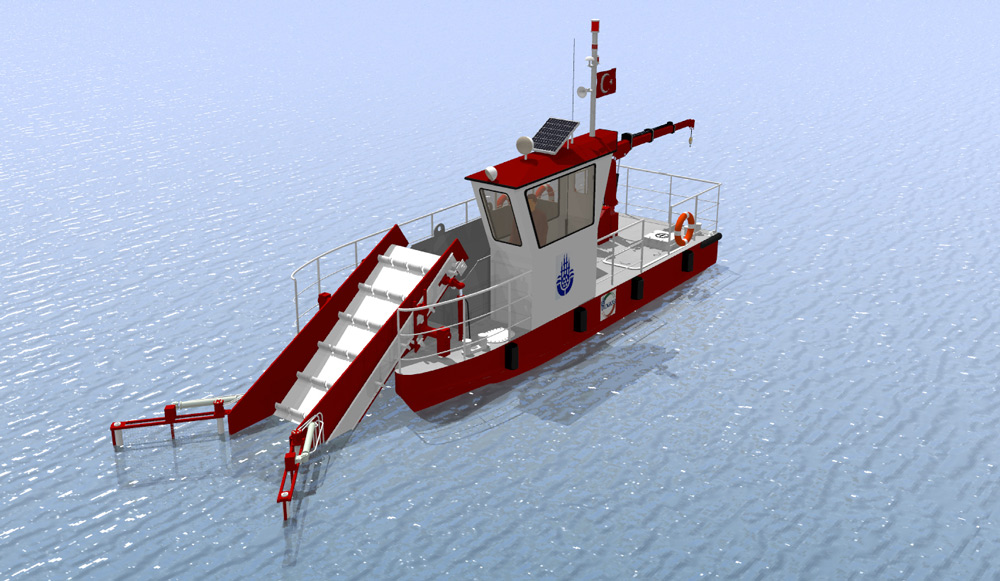

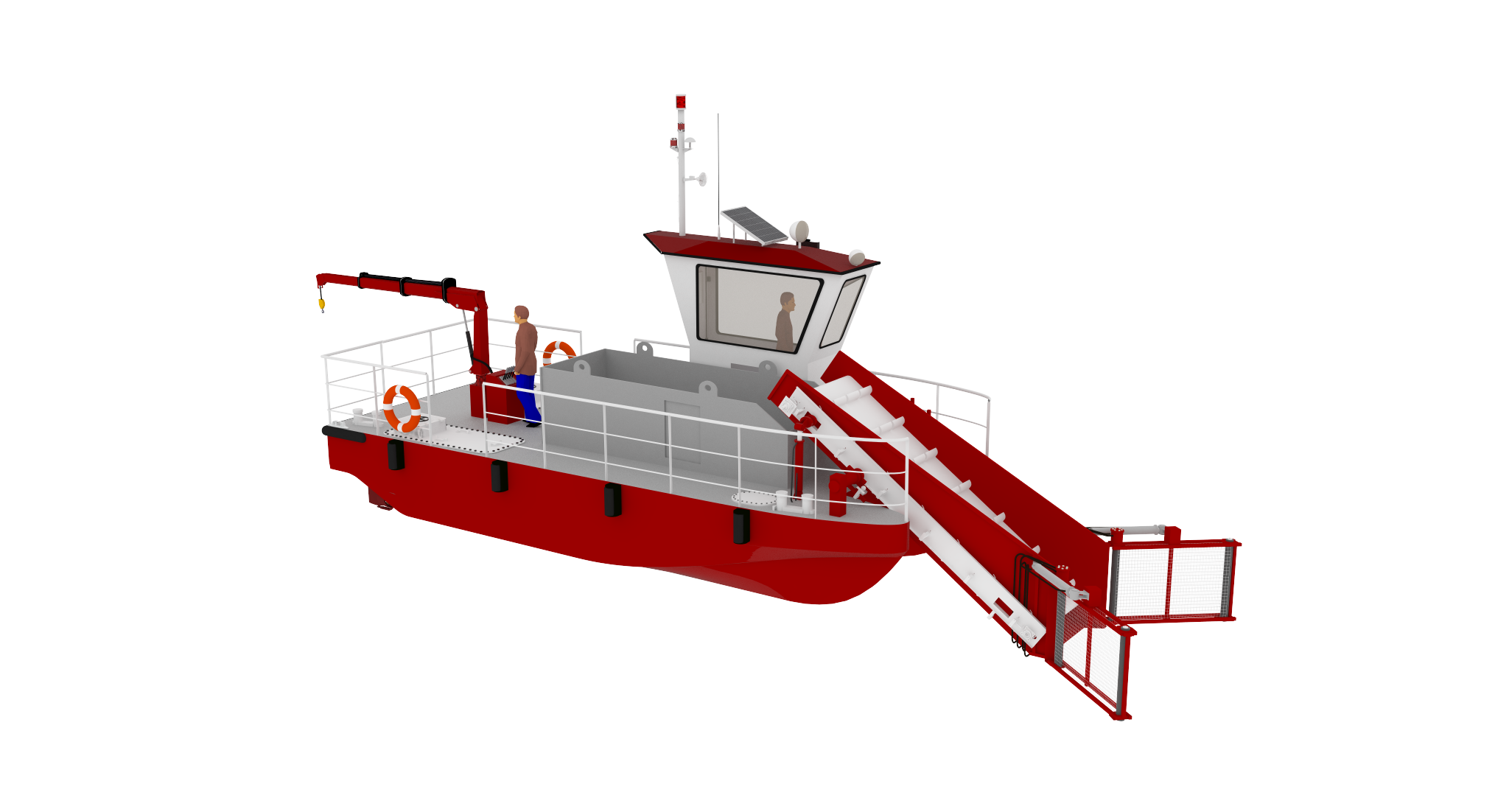

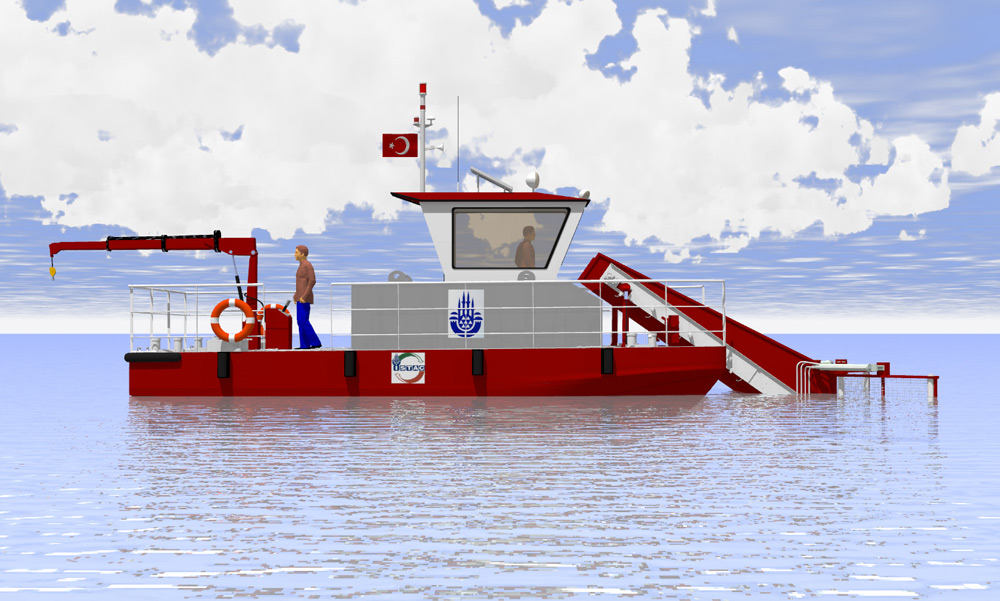

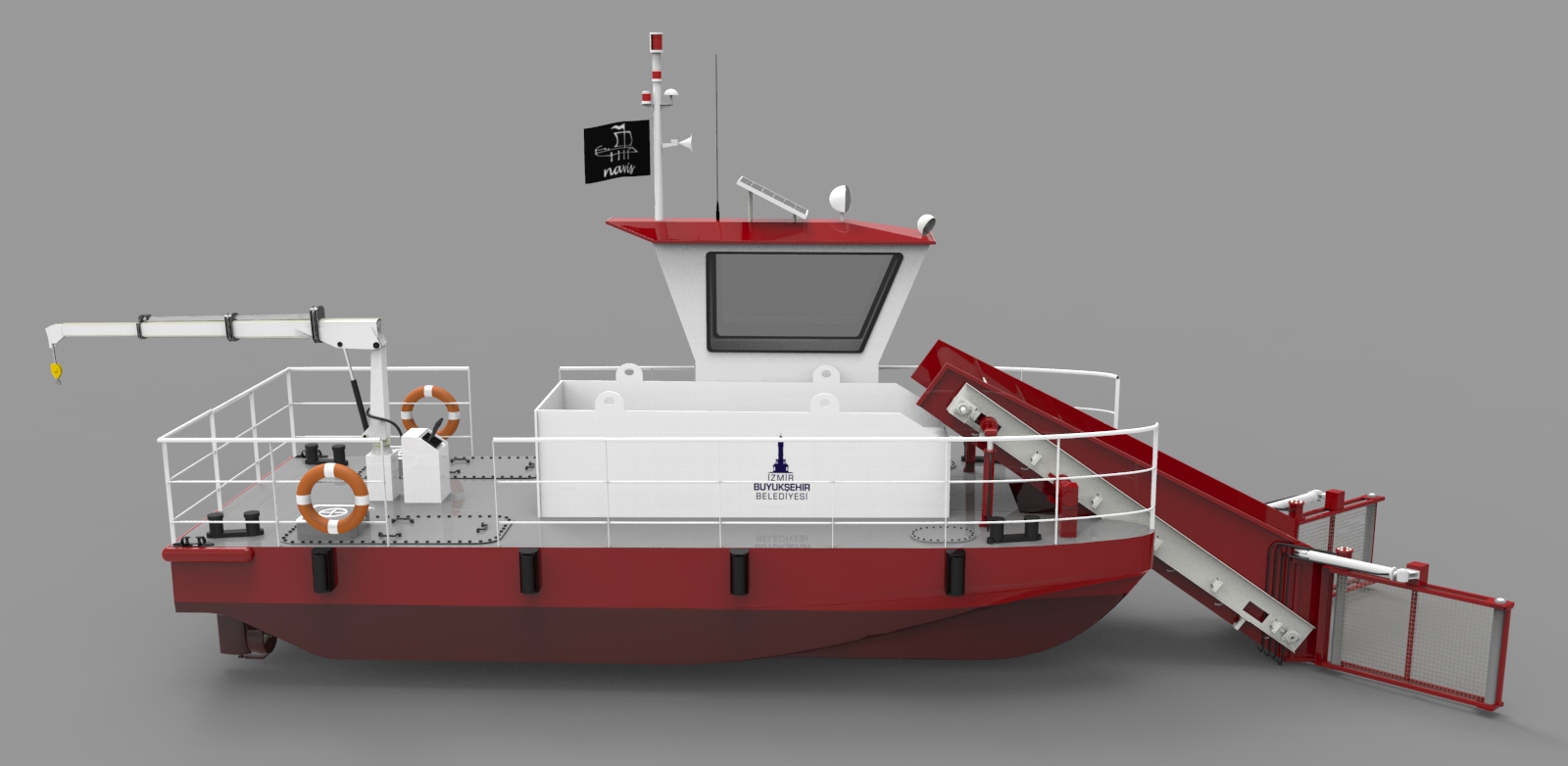

The vessel is an aluminium trash skimmer vessel, designed to work in shallow waters for cleaning operation of floating debris and trash at harbors, marinas and waterfront. The vessel is powered by twin fixed pitch propellers.
Main Particular
| Loa | 9.50 m |
| B | 3.40 m |
| D | 1.35 m |
| d | 0.55 m |
| Air draught (max) | 4.00 m |
| Main Engine | 2x200 HP |
| Hull | Aluminium |
| Superstructure | Aluminium |
| DO | 3500 lt |
| FW | 1000 lt |
Download Technical Sheet
MAIN FEATURES
Hyd. operated pick up conveyor at fwd, 2 skimmer heads with capture plates, solar cell.
PROPULSION SYSTEM
2x200 HP @ 1900 rpm main engines, 2 fixed pitch propellers.
CAPACITIES
3500lt diesel oil, 1000lt fresh water, 500lt bilge, 600lt sewage, 6000lt garbage storage capacity.
AUX MACHINES
1x30 kW diesel generator, electric driven hyd. Power unit, bilge pumps.
